ACE Belly Dump
ACE Belly Dump

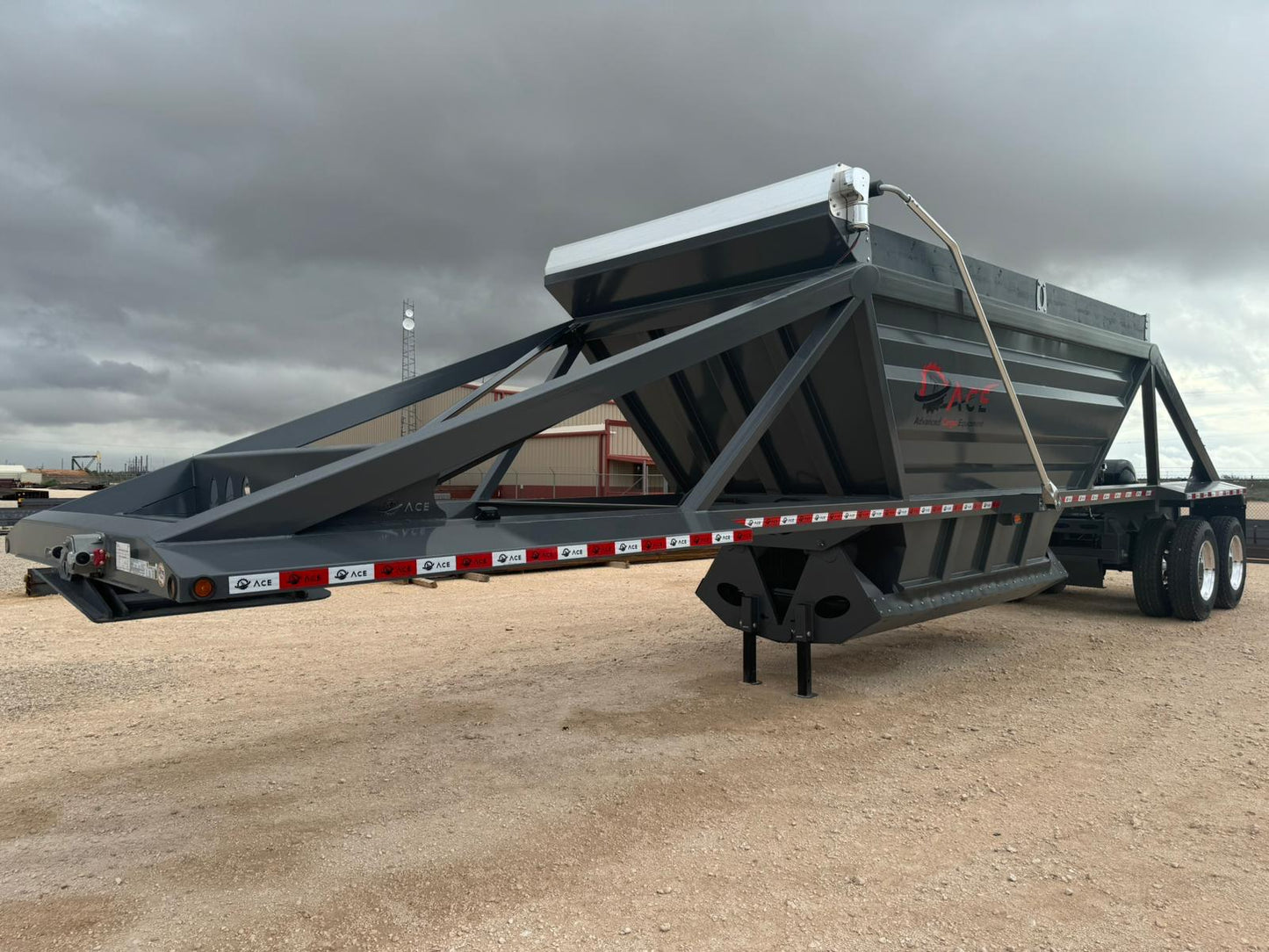

Introducing the ACE Belly Dump: Your Reliable Solution for Material Handling
The ACE Belly Dump is a premium-quality dump trailer engineered for optimal performance and durability. Designed for efficient material handling, this trailer features a sleek, modern design and a robust construction that can withstand heavy loads and demanding job sites. Its high-strength steel frame ensures longevity and resilience, while the aerodynamic shape enhances stability and fuel efficiency.
The belly dump configuration allows for quick, precise unloading of materials such as gravel, sand, and aggregate. The advanced hydraulic system provides smooth, reliable operation, making it easy to control the dumping process and reduce downtime. The trailer’s user-friendly controls and efficient design contribute to improved productivity and operational efficiency.
Ideal for use in construction, landscaping, and mining applications, the ACE Belly Dump combines superior functionality with exceptional durability. Invest in this top-of-the-line trailer for a dependable solution to all your material handling needs.
Additional Information
| Capacity | 23.5 Cubic Yards |
| Length | 40 ft |
| Suspension | Tandem with Air Ride Suspension |
| Axle | 25,000 lbs 5” tubular with 16 1/2” x 7” cam brakes and oil seals |
| Fifth Wheel | Oscillating |
| Parking Legs | Gate Mounted |
| Tires & Wheels | Dual with 24.5 Steel Rims |
| Brake System | Air Brakes; ABS on one axle |
| Lights | LED Rubber mounted |
| Gate | Commercial Grade Steel with Chain Stops, Filter, and Lubricator |
| Gate Control | Manual & Electric Valve; Electric controlled from cab and Manual from the ground |
| Cylinders | (2) 7” Pneumatic cylinders with 1 ¾” shaft |
| Tarp | Electric Flip Tarp |
| Windrow Deflector | Standard |
| DOT Bumper | Push block with under-ride protection |
| Top Rail | 4” x 6” x 3/16 Tube H.S.L.A |
| Bottom Rail | 4” x 6” x 3/16” Tube H.S.L.A |
| Sides | 54” High (10 gauge) |
| Hopper | 58” x 108” opening double gates with 3/16” on floor and 3/16” side slope sheets |
| Weight | Duro Thane 4 spring 3 leaf Suspension (Trailer Weight 12,920 lbs) Air Ride Suspension (Trailer Weight 13,200 lbs) Single Point Suspension (Trailer weight 13,200 lbs) |
| Options | Tandem axle and Tri axle Steel white wheels or Aluminum wheels Dual 8.25 x 24.5 steel disc 8-hub piloted wheels with 11R x 24.5 Tires Manual Tarp or Electric Tarp |
| Color | Gray |
