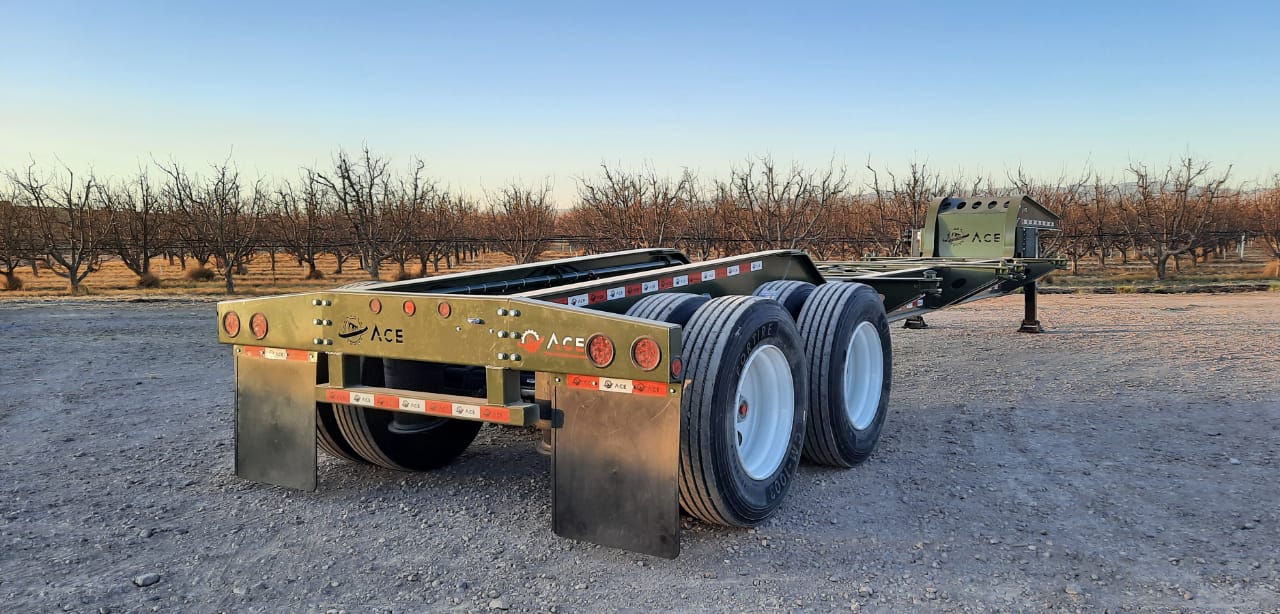

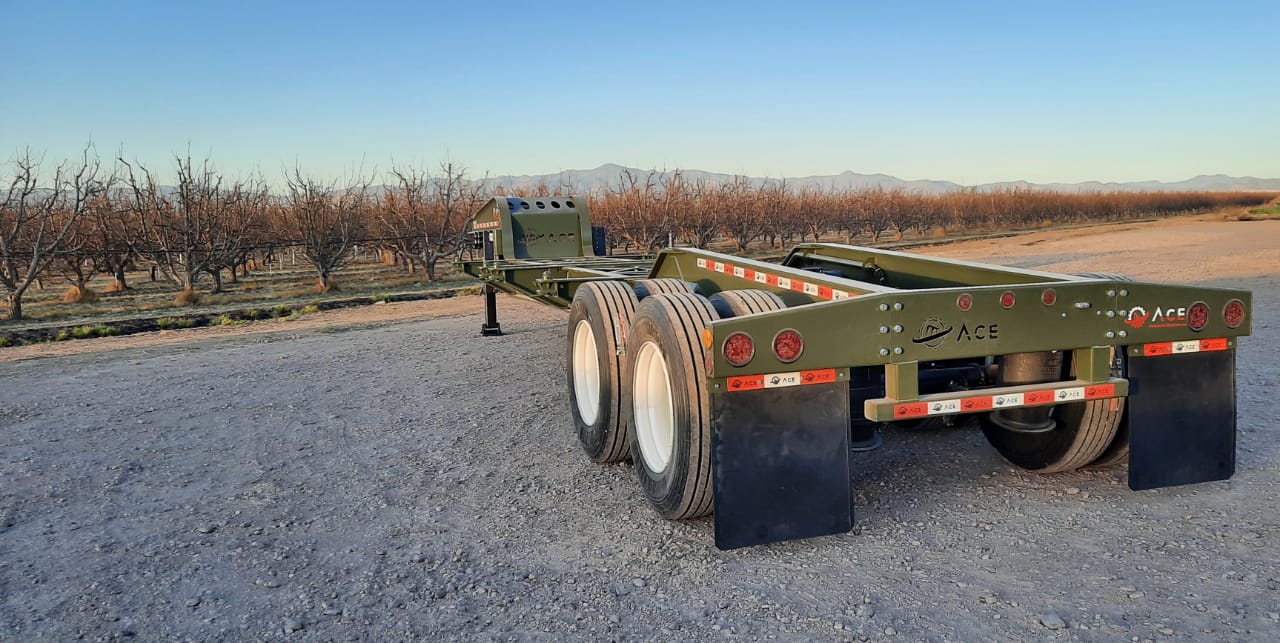

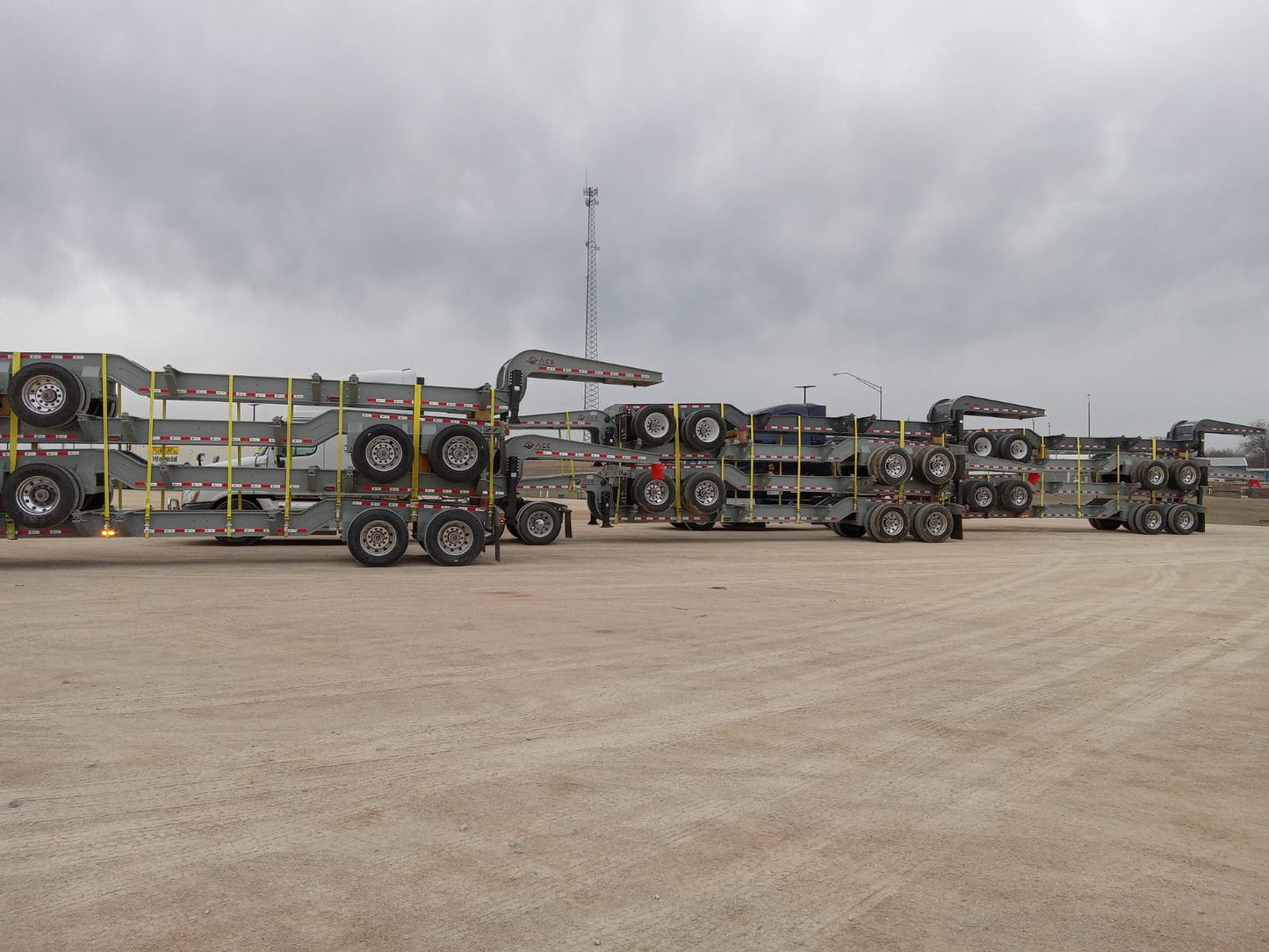

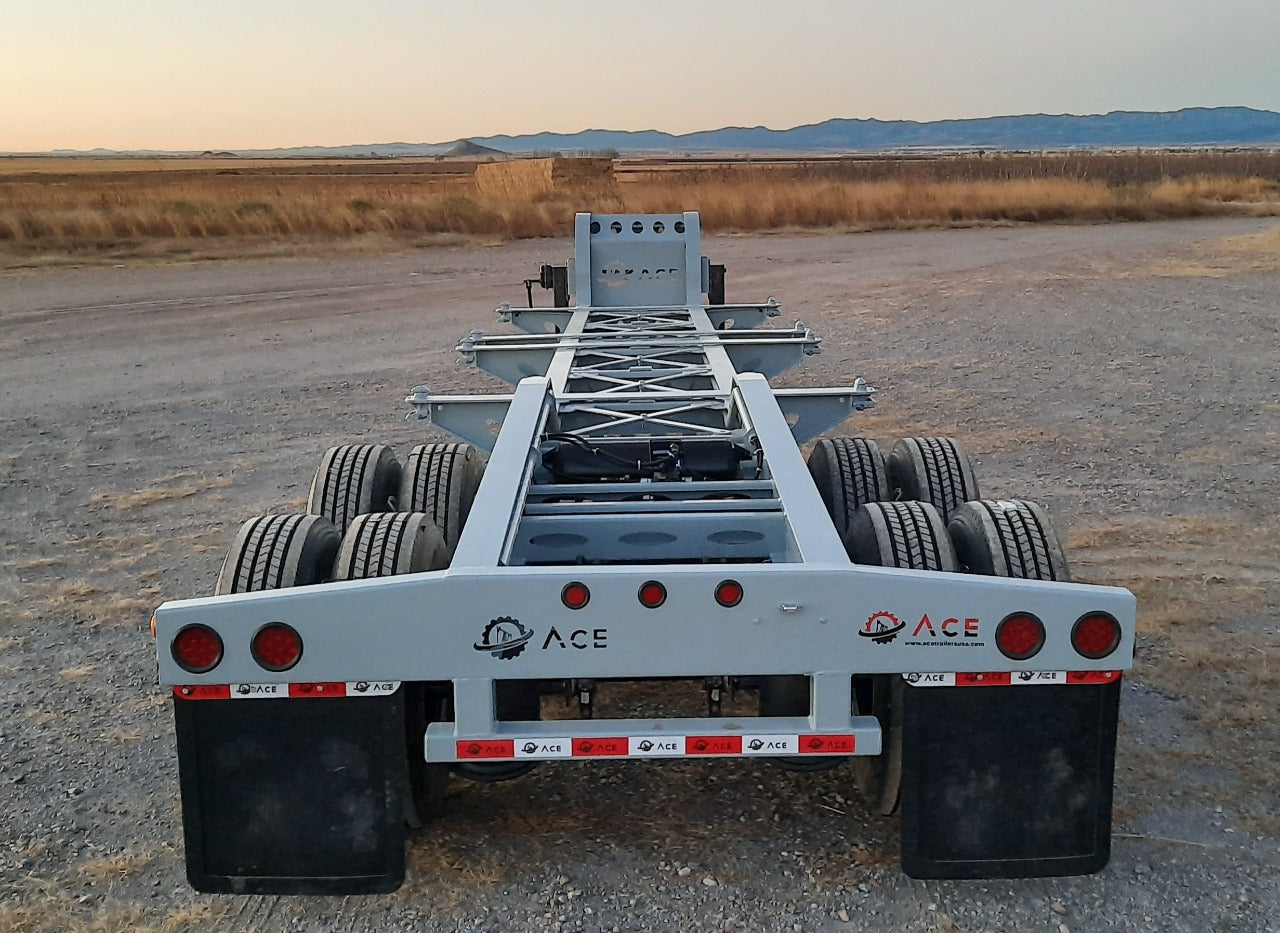

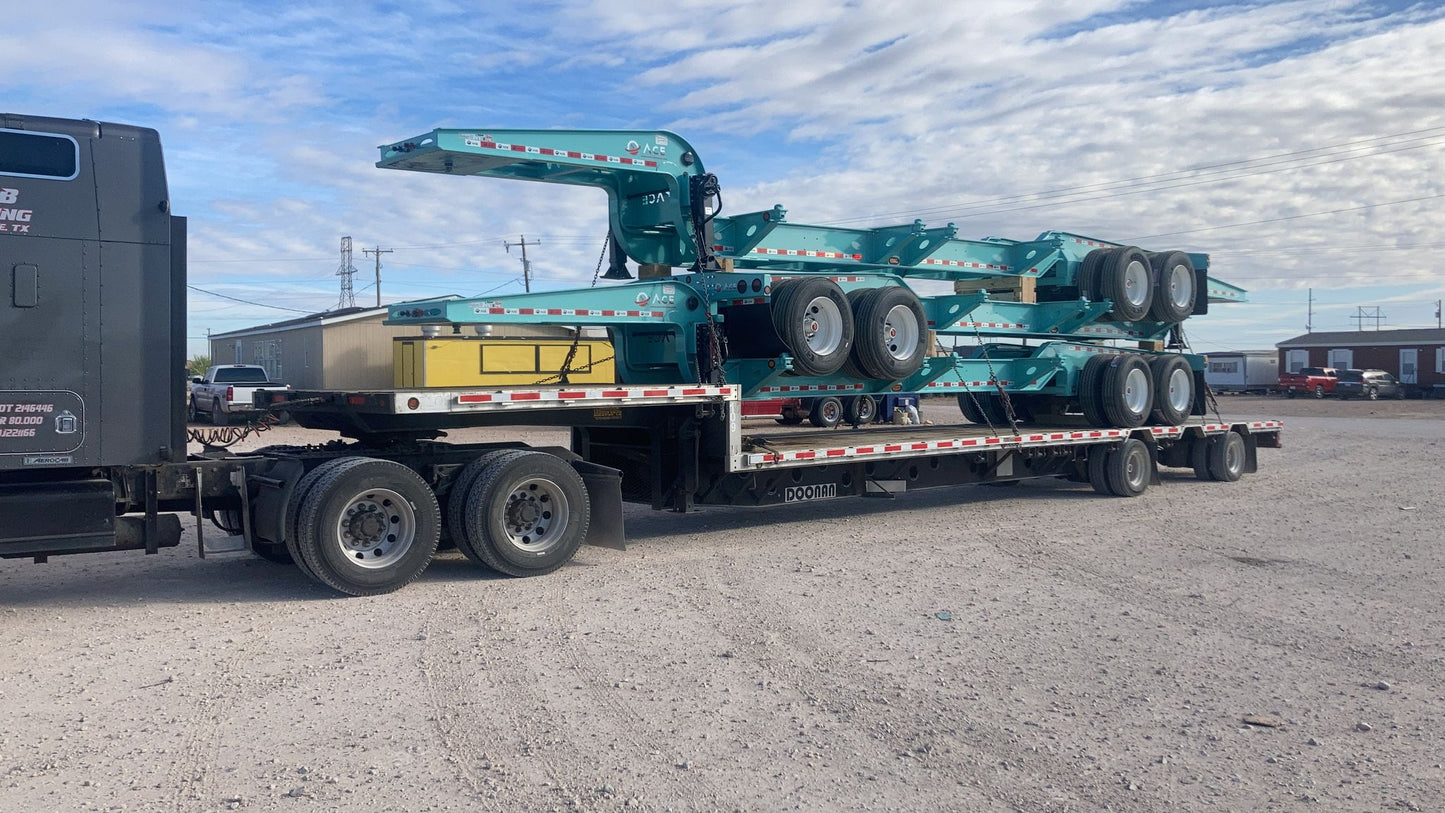

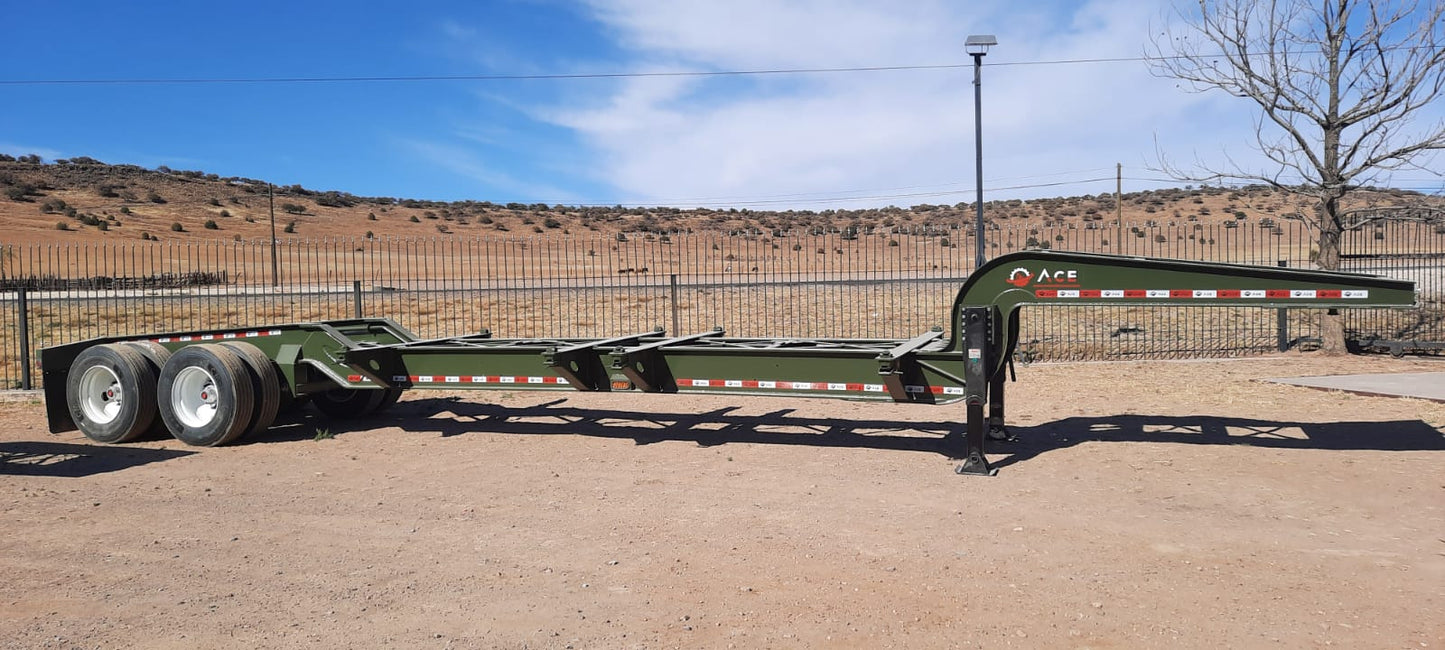

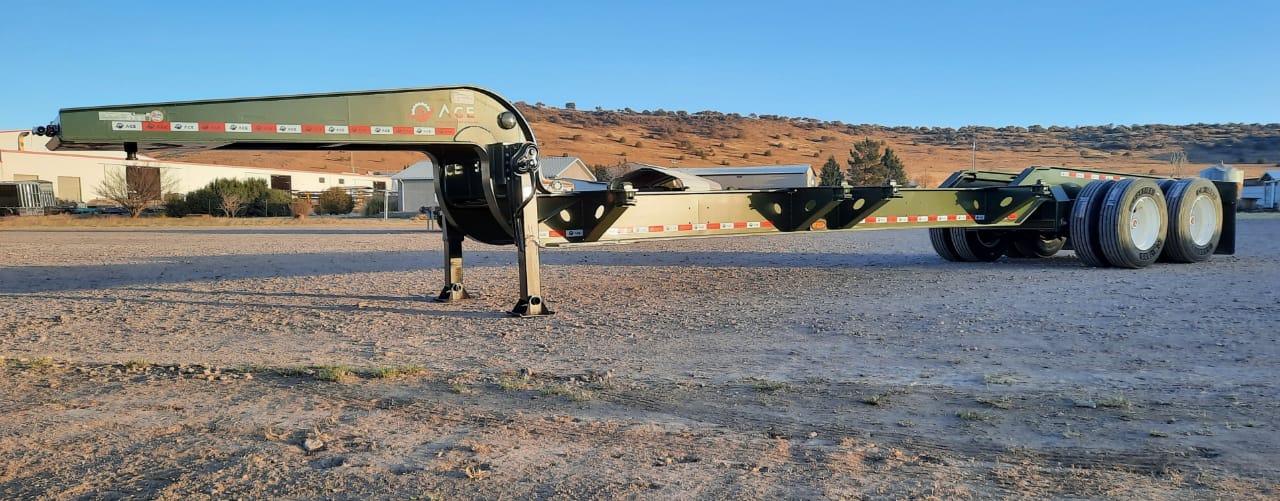

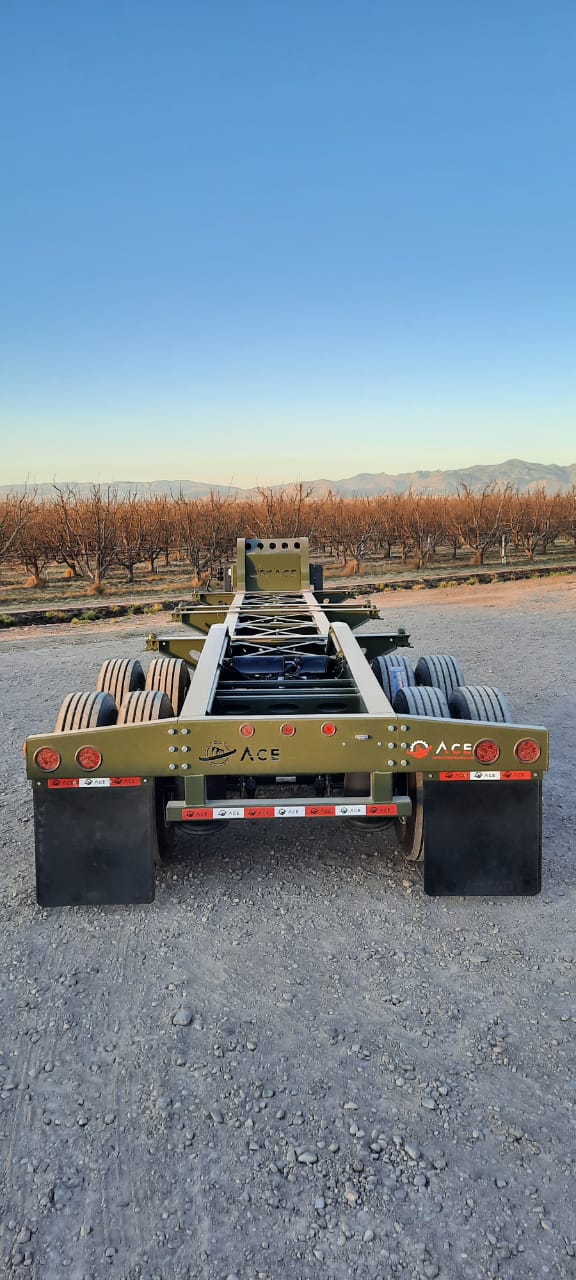

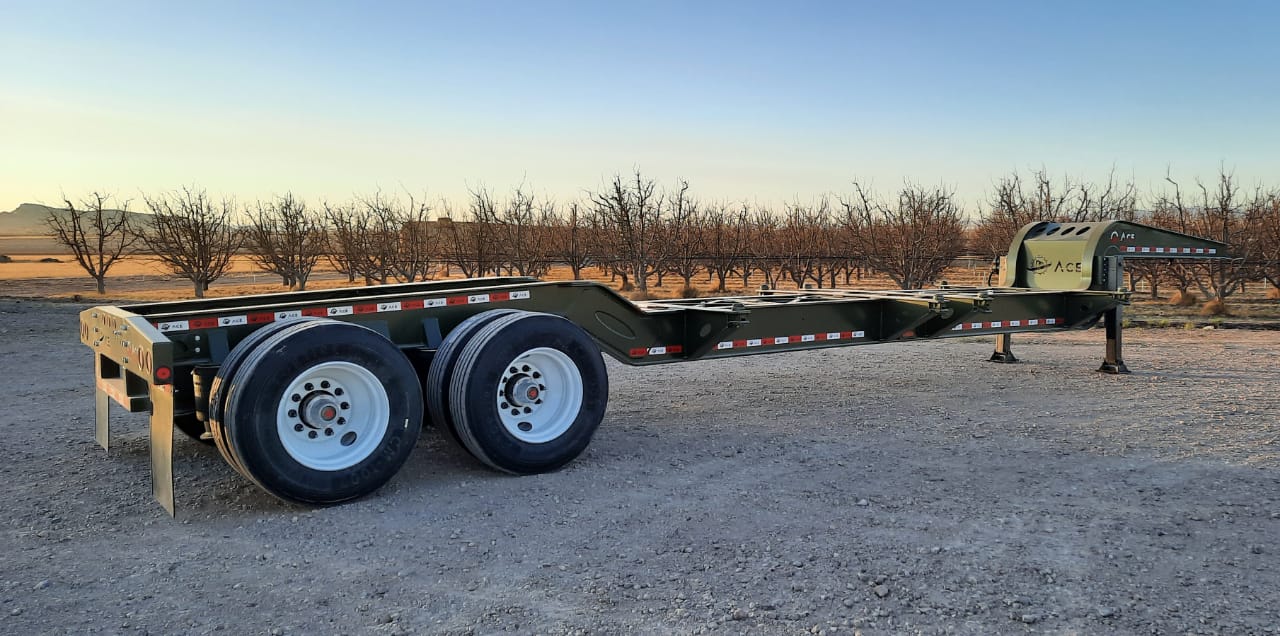

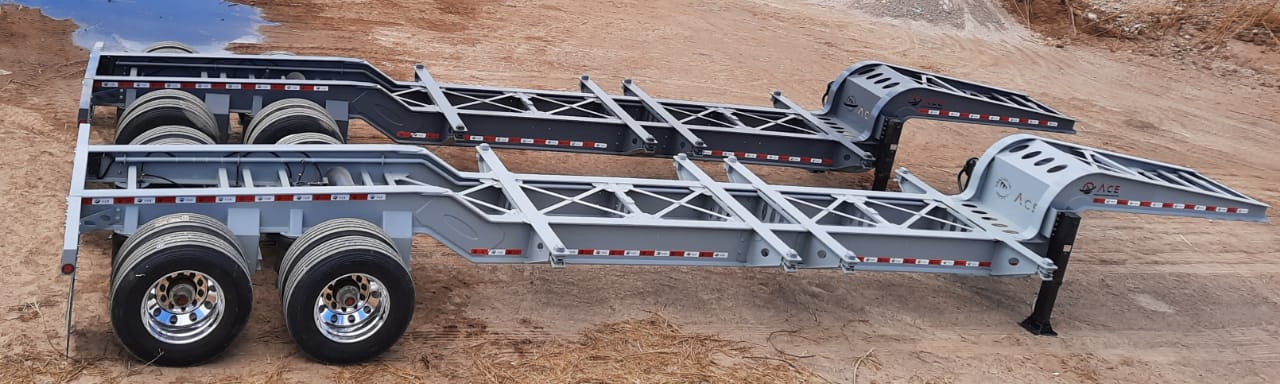

ACE TD488 Sand Chassis Trailer
ACE TD488 Sand Chassis Trailer
Introducing the ACE TD488 Sand Chassis Trailer, a top-tier solution specifically engineered for the safe and efficient transportation and storage of frac sand boxes. This trailer is an essential asset for any frac sand hauling operation within the demanding oil and gas industry.
Superior Construction and Performance
Built with high-quality materials, the ACE TD488 is designed to last, capable of carrying up to 40,000 lbs of frac sand in a single load. Its lightweight and aerodynamic design not only maximizes load capacity but also reduces fuel consumption, making it a cost-effective and eco-friendly choice for your operation.
Durability and Reliability
The ACE TD488 Sand Chassis Trailer features a reinforced structure that offers exceptional strength and durability, perfect for withstanding the toughest job site conditions. Its advanced suspension system minimizes wear and tear, ensuring a longer service life while reducing overall maintenance costs.
Ease of Use
Designed with user-friendliness in mind, this chassis trailer includes an easy-to-operate hydraulic system, allowing for quick and efficient loading and unloading of frac sand boxes. The hydraulic lift system ensures smooth access to the sandbox, streamlining your operation and saving valuable time.
Your Ideal Frac Sand Transport Solution
The ACE TD488 Sand Chassis Trailer stands out as the ultimate solution for safe, efficient, and cost-effective frac sand transportation. Whether you’re in the oil and gas industry or handling large-scale sand hauling operations, this trailer is built to meet your needs.
Contact us today to learn more about how the ACE TD488 Sand Chassis Trailer can enhance your operations.
___

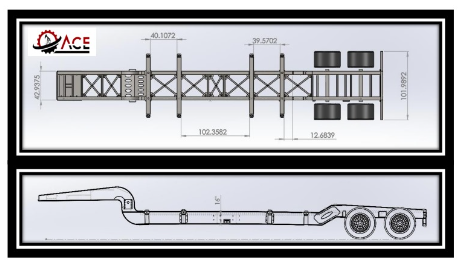

Specs
- Estimated Weight: Base models and standard spec - 10,100 lbs
- Overall Length: 40.5 Feet
- Overall Width: 102 Inches
- Suspension Type: Air Ride, closed tandem-Spring ride, and spread axle options available
- Frame Length: 10 Feet Front
- Frame Rating: GAWR and tire ratings determine payload
- Frame Height at Rear: 40 inches loaded
- Main Beams: A572 Grade 50 Steel
- Kingpin: Holland King Pin set to 18" with 82" swing clearance, $9' high steel plate
- Loaded Fifth Wheel Height: 44 Inches
- Landing Gear: AMPRO Type FW2817C00, or HJ Rockwell Type HJZC2819
- Electrical System: LED Sealed System 3 lights per side 2 Lights per side on the rear
- Paint: Lime Green, Military Green, Royal Blue, Agave Blue, Red, Orange, Black, Pink, White, Yellow, Optional
- Conspicuity Tape: Per HITSA specs-3M Brand, Ace Branded
- Bumper: Weld on type-Meets underride requirements
- Bolsters: Heavy duty fabricated type mounted on top of lower deck main beam and adjustable to fit two 8' boxes or 1-one 10' box
- Number of Axles: 2-30,000Lb
- Axle Spindle: AMPRO Tapered Standard
- Brakes: Spring brakes, Auto slacks
- Air Line Filters: Optional
- ABS: HAAQ96 102 Haldex IM2S ABS System
- Hub & Drums: 10 Hole Hub
- Wheel Ends: Oil in hubs
- Wheels: 22.5x8.25 Steel disc pre-painted white
- Tires: 295/75R22.5 16PR OEM Standard
- Suspension Detail: HT3009AMPRO air ride 30,000 lbs Type HT-300
- Air Lift: Optional
- Mudflaps: One set OEM at the rear, Ace Branded
- Container Locks: 8 heavy-duty locks installed
- Registration Holder: Plastic
