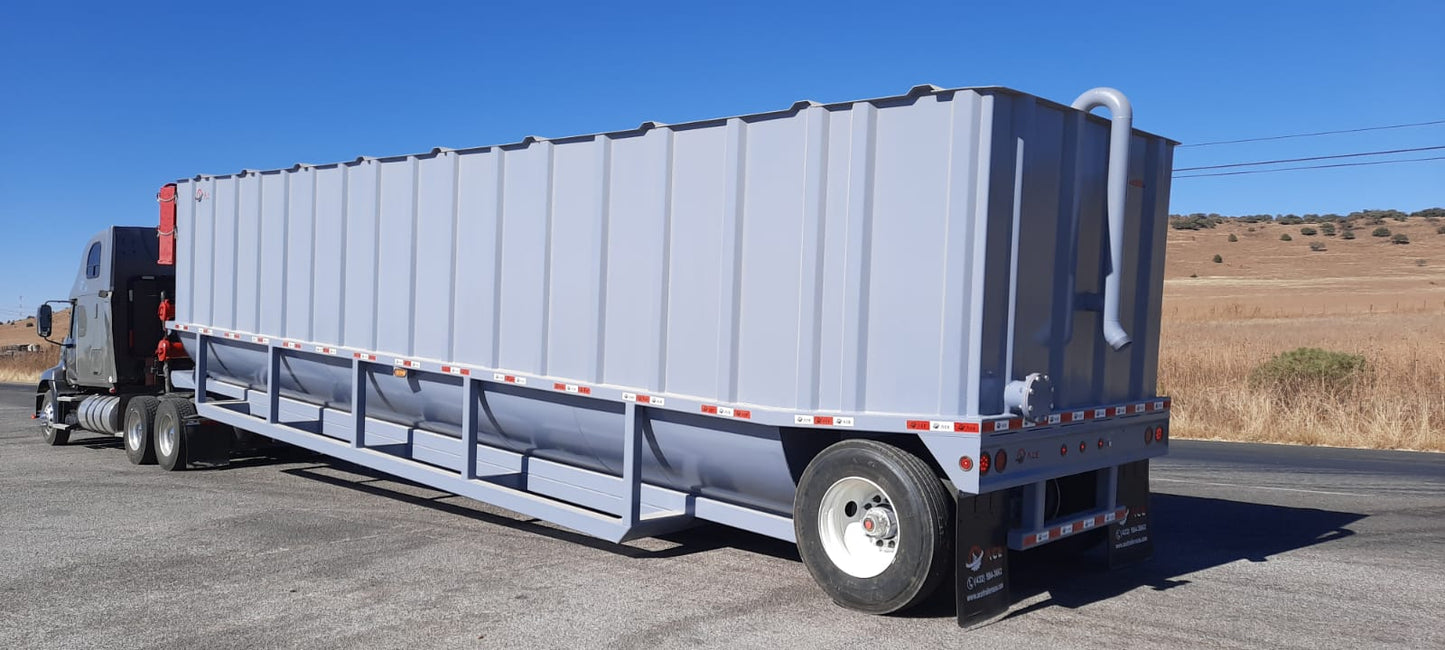

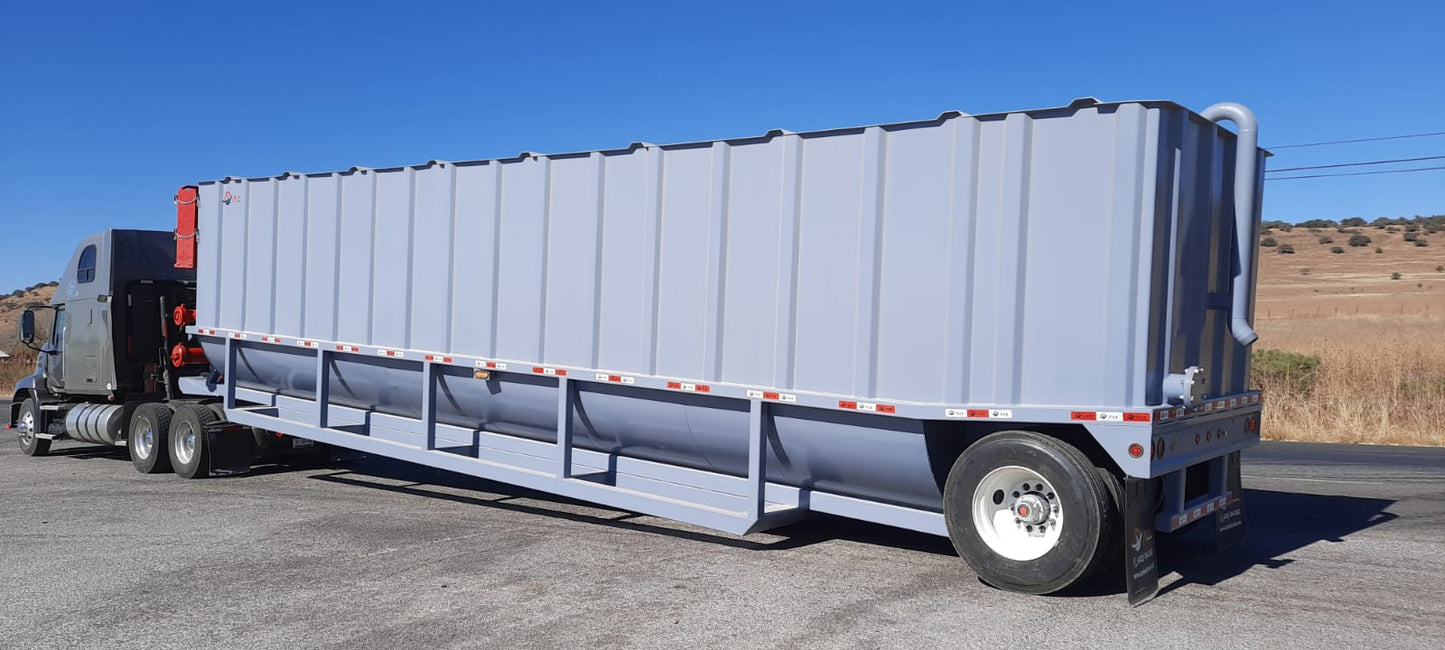

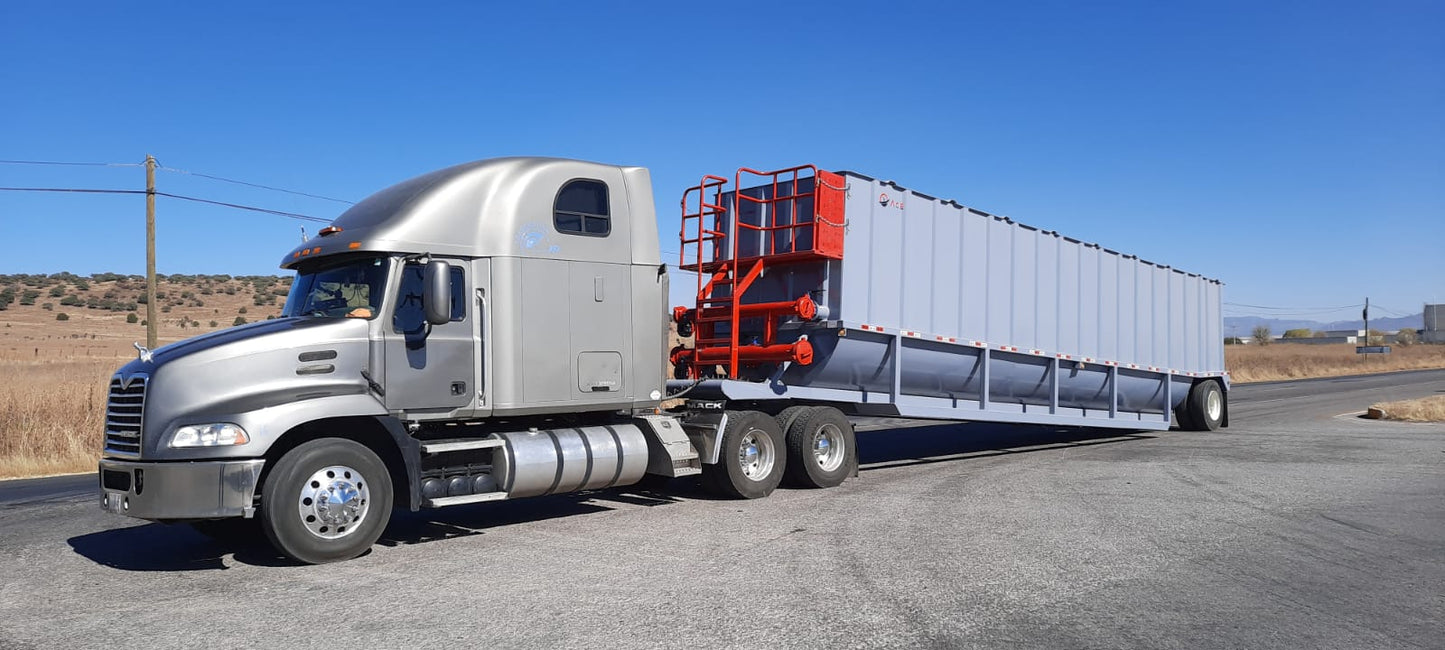

500 BBL Frac Tank Trailer

500 BBL Frac Tank Trailer

Custom Order Your Frac Trailer!

Basic Specs Include:

500 BBL in either
- Round Bottom
- V Bottom

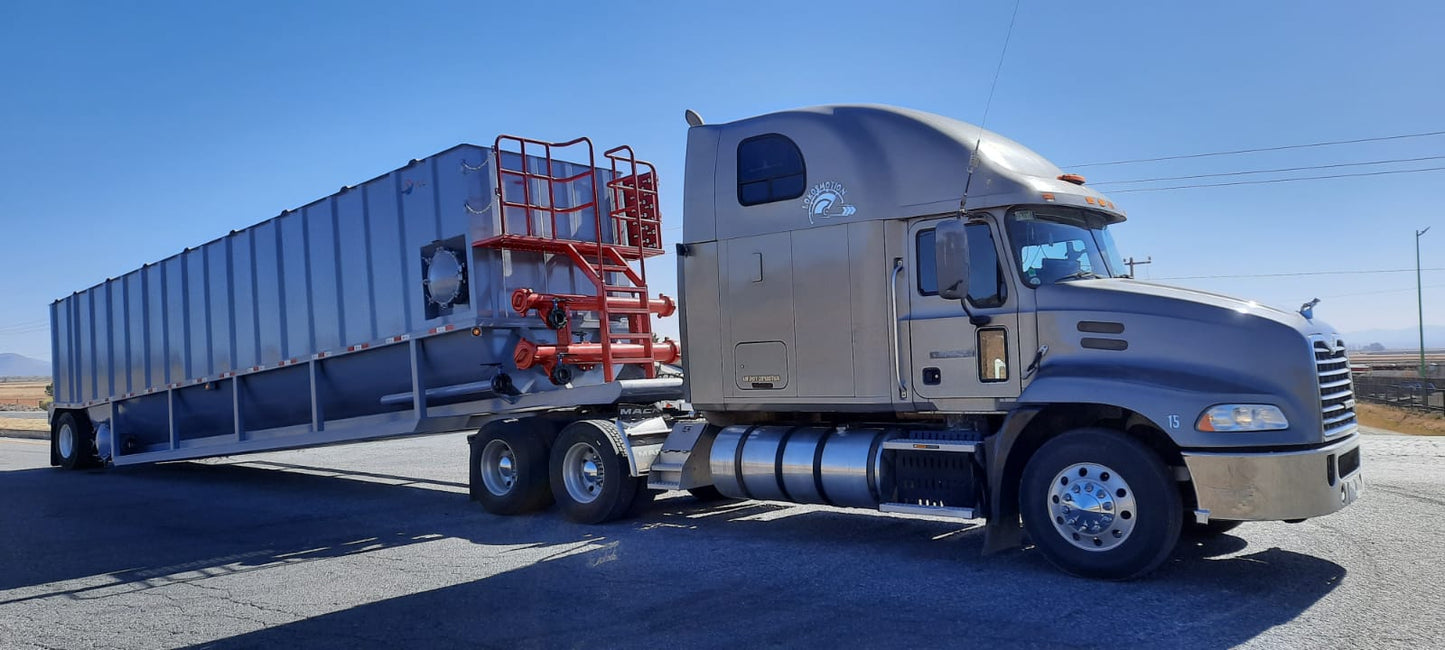

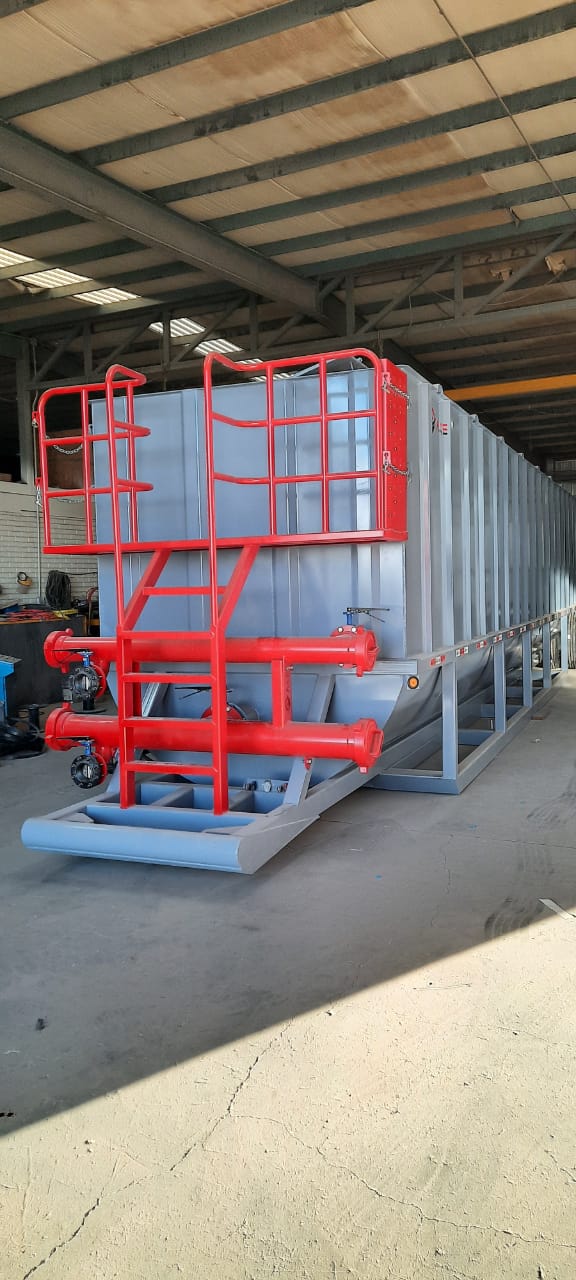

Manifold with hammer unions
- 6" manifold
- 8" manifold
- single or double
- 4" butterfly valve drains front and back
- (2) 20" man ways
- (1) 20" hatch on top
- 6" roll line in side with down spouts

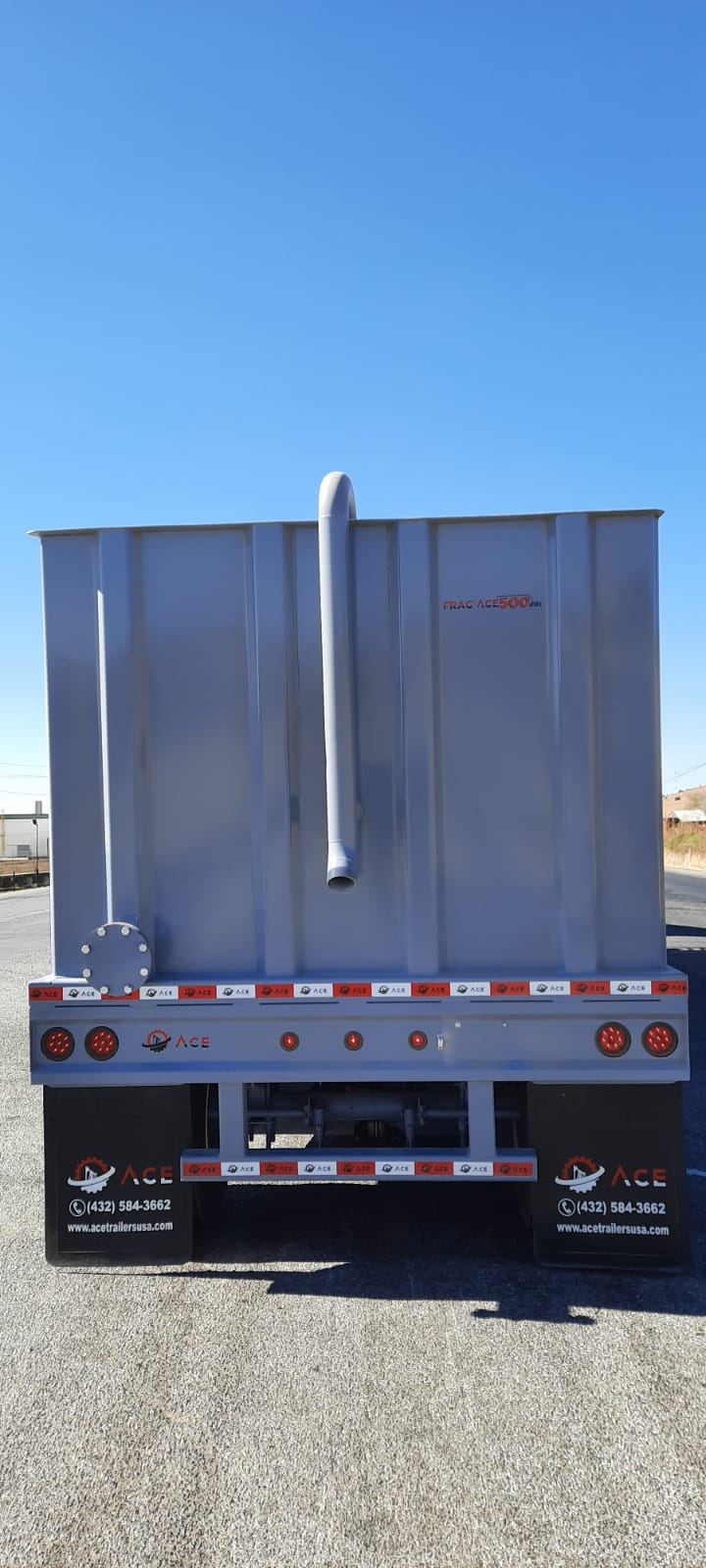

- candy cane fill tube at rear
- sunken sump to drain tank

- side support frame
- 25,000 lbs rear axle
- ladder up front in center to guard railed platform
- man way with cross over lid to the next

- epoxy coated inside

Estimated Weight: Base Models and standard specs - 9,000 LBS.

Overall Length: 45 Feet

Overall Width: 102 Inches

Suspension Type: Wide Spread Air

Frame Length: 10 Feet Front

Frame Rating: GAWR and tire ratings determine payload

Frame Height at Rear: 40 inches loaded

Main Beams: 130K Flanges

Kingpin: Set at 18 inches with 82" swing clearance

Loaded Fifth Wheel Height: 49 Inches

Landing Gear: AMPRO Type FW2817C00

Bolsters: Heavy duty fabricated type mounted on top of lower deck main beam

Number of Axels: 2

Axel Spindle: Tapered Standard

Brakes: Spring brakes, Auto slacks; Dust Shields

Air Line Filters: Optional

ABS: Meritor/Wabco RSS 4S/2M

Axel Spread: 122 Inches set to rear

Hub & Drums: 10 Hole Hub

Wheel Ends: Grease in hubs

Wheels: 22.5 x 8.25 Steel disc pre-painted white

Tires: 255/70R 22.5 16PR OEM Standard

Suspension Detail: AANL23K Intraax air ride

Auto Glad Hand Dump: Installed

Electric Dump Valve: Optional

Air Lift: Optional

Front Corners: Standard

Electrical System: LED Sealed System 3 light per side 2 Lights per side
on rear

Paint: Green with envy

Conspicuity Tape: Per HHTSA specs - 3M Brand

Bumper: Weld on type - Meets under-ride requirements

Mudflaps: One set OEM at rear

Container Locks: Installed on lower deck to accept: 2-8' sand containers or 1 10' container

Registration Holder: Plastic

VIN Plate: Bilingual US/MEX VIN

Weighing: Scale weight installed on
each trailer


ACE Trailers USA - - 817-601-1628
